HR50 Smart Controller

The HR50 intelligent controller adopts advanced control technologies, including: on-site signal acquisition function, real-time control logic operation function, control signal output function, etc.

The controller uses a programming language compliant with the IEC61131-3 standard and has the flexible and convenient characteristic of configurable modification, which can adapt to the diverse needs of different control objects. Meanwhile, its powerful computing capabilities and high-speed processing performance can meet the strict requirements of application objects for real-time control response time.

Functional advantages

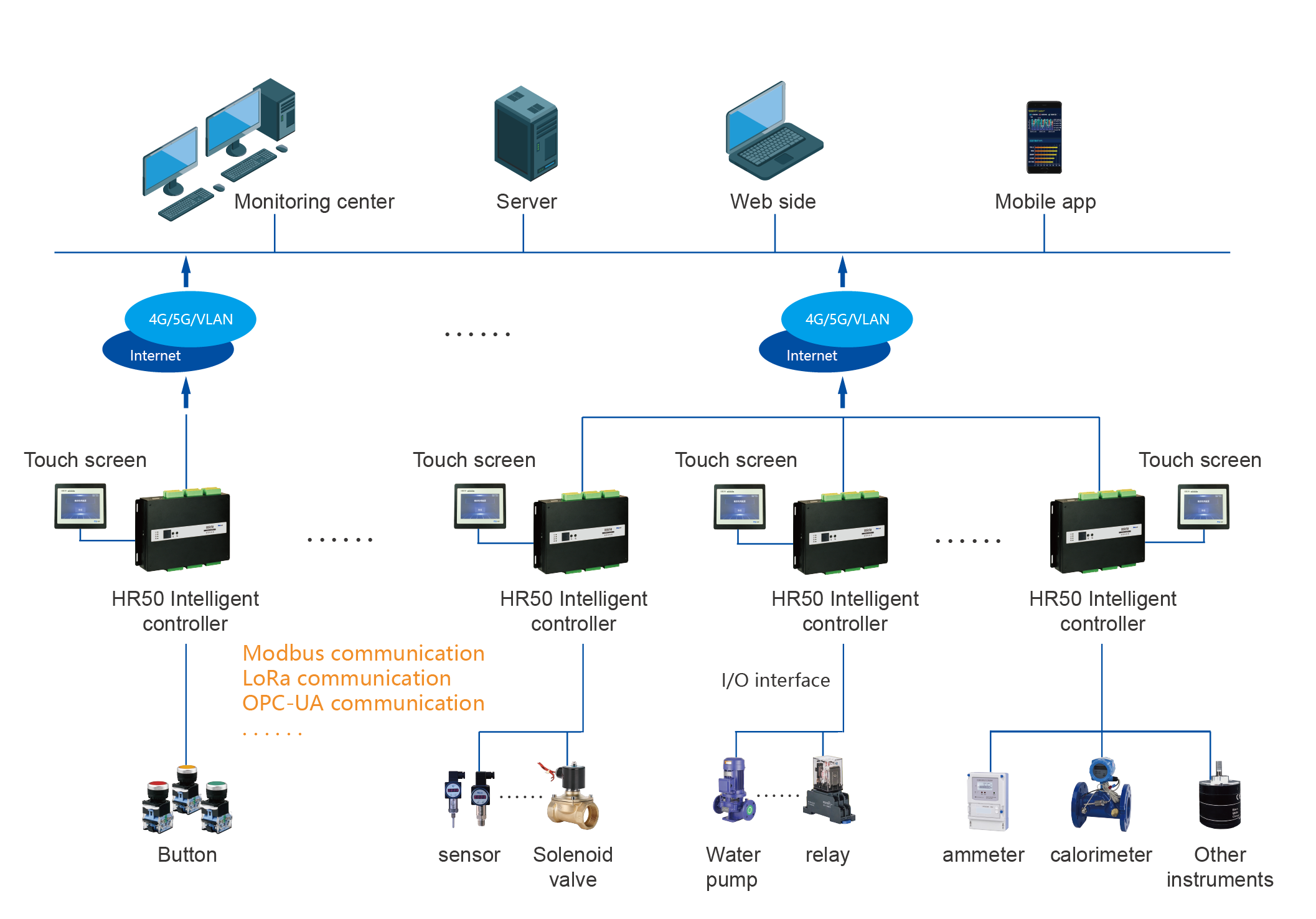

System structure diagram

Industry application

Data download

Typical performance

Functional advantages

Supports AI, AO, DI, DO, RTD.
IO refresh cycle ≤ 10ms, typical control cycle 20ms.
Supports automatic temperature regulation and variable frequency control of circulation pumps.
Supports automatic water replenishment and pressure stabilization, as well as regular inspection control.
Comes with an LED small screen to display system operation information.
Integrated touch configuration screen (optional).
Integrated 4G full-network communication router (optional).
Supports LoRa expansion, M-bus expansion, and IO expansion.
Comes with instrument protocol analysis software.
